Tangential Combustion Engine
Patent No: EP4321727
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel internal combustion engine.
[0002] In the development of internal combustion engines, one of the main goals is to make as effective use as possible of the energy obtained by the fuel used, i.e. to achieve as high an efficiency as possible, in order thereby to save fuel.
[0003] In the prior art, reciprocating piston engines are known in which the work performed by the expansion of the gases generated by the combustion of fuel in a cylinder is transmitted to a piston and further to a crankshaft through a connecting rod, wherein the connecting rod has a joint connection to the piston and the crankshaft (crank drive), respectively. Thus, the oscillating movement of the piston is converted into a rotational movement, i.e. a torque is generated.
[0004] A disadvantage of the force transmission in these conventional reciprocating piston engines is that mechanical dead points are present due to the crank drive, toward which points the transmitted force decreases in a sinusoidal manner.
[0005] The present invention has for its object to further increase the efficiency of conventional internal combustion engines, in order to thus enable a more fuel-saving operation.
[0006] The present invention is based on the finding that, by virtue of a special shape of the cylinders, the piston thrust movement generated therein can be converted directly into a torque and the transmitted force is thus always transmitted tangentially, i.e. at the sinusoidal angle of 90°, to a shaft.
[0007] The present invention therefore provides an internal combustion engine which is characterized in that it comprises two cylinders which are in the form of a segment of a circle in their longitudinal direction and in each of which a piston is arranged such that it can be moved from a position at a minimum distance from the cylinder head P min to a position at a maximum distance from the cylinder head P max and in each case a connecting rod which is in the form of a segment of a circle in its longitudinal direction, a freewheel assigned to each cylinder on the sides of the pistons remote from the combustion chamber,

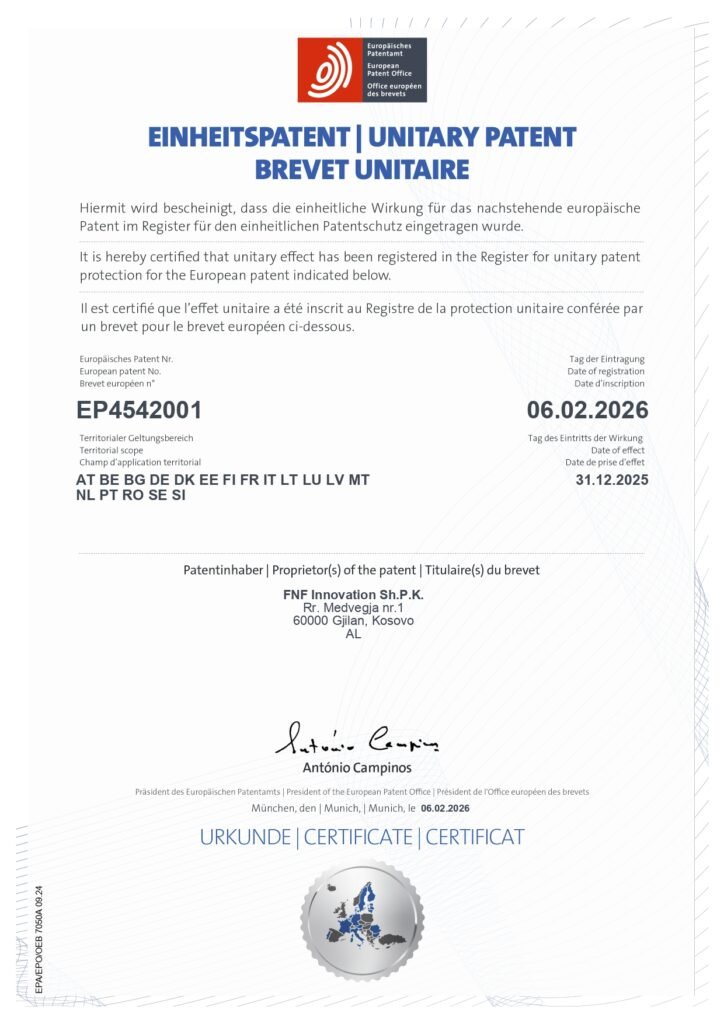

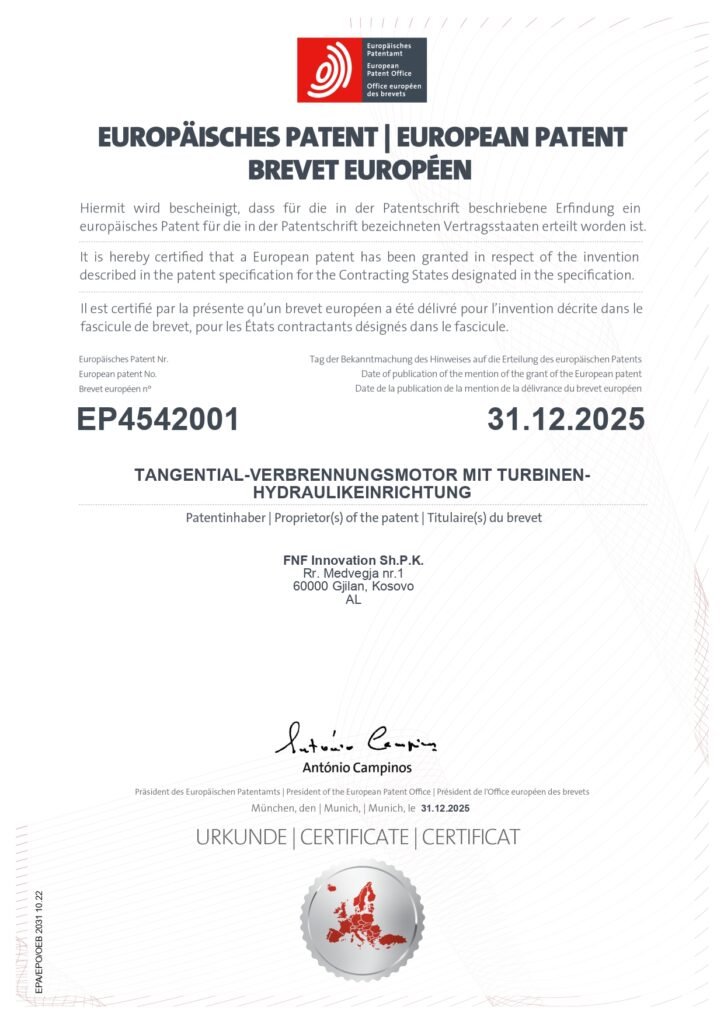

Tangential Combustion Engine with Turbine Hydraulic System
Patent No: EP4542001
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel internal combustion engine.
[0002] In the development of internal combustion engines, one of the main goals is to make as effective use as possible of the energy obtained by the fuel used, i.e. to achieve as high an efficiency as possible, in order thereby to save fuel.
[0003] In the prior art, reciprocating piston engines are known in which the work performed by the expansion of the gases generated by the combustion of fuel in a cylinder is transmitted to a piston and further to a crankshaft through a connecting rod, wherein the connecting rod has a joint connection to the piston and the crankshaft (crank drive), respectively. Thus, the oscillating movement of the piston is converted into a rotational movement, i.e. a torque is generated.
[0004] The present invention has for its object to further increase the efficiency of conventional internal combustion engines in order to be able to allow a more fuel-saving operation.
[0005] The present invention therefore provides an internal combustion engine which is capable of operating in accordance with the present invention.

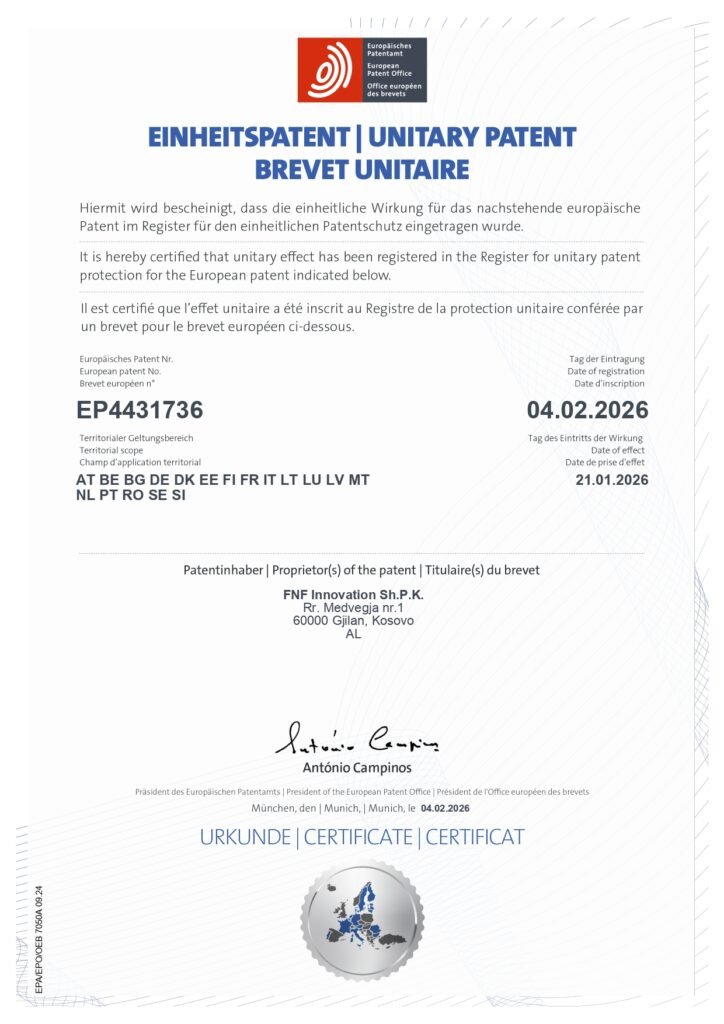

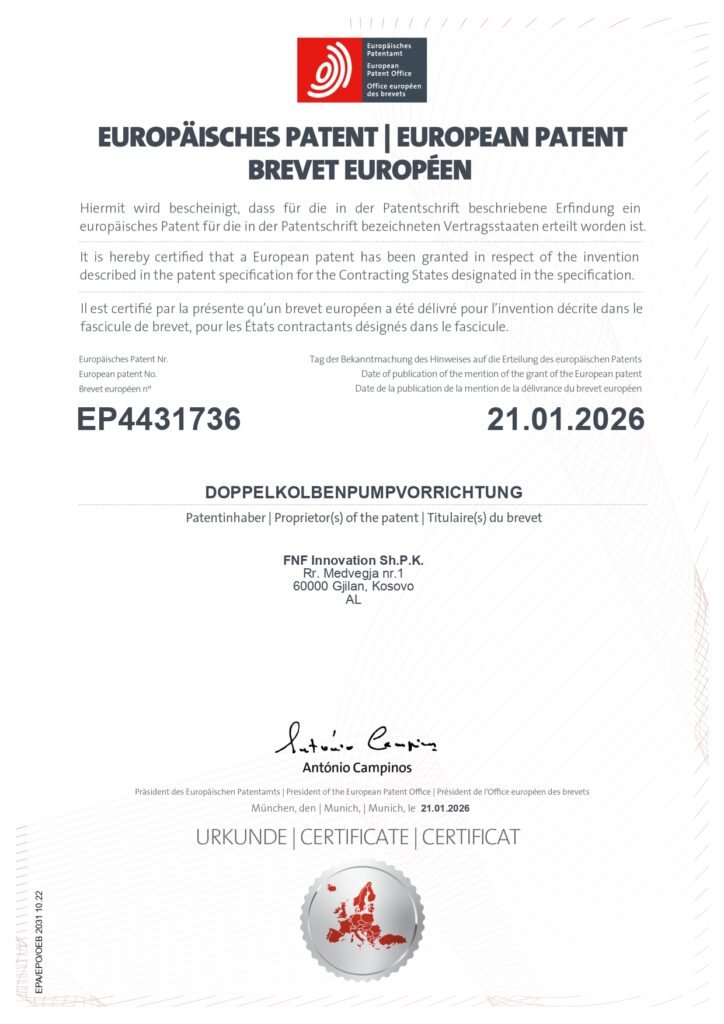

Double Piston Pump Device
Patent No: EP4431736
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel dual piston pumping device.
[0002] Piston pumps in various embodiments are known in the prior art, see, for example, Dubbel, Machinbau, Chapter H8.
[0003] The present invention has the object of providing a piston pump which achieves a high efficiency, enables the most uniform possible delivery of the delivered fluid and is simple and cost-effective to produce.
[0004] The present invention therefore provides a novel double piston pumping device which comprises a first hydraulic cylinder and a second hydraulic cylinder, each of which is completely filled with a fluid, preferably a liquid, and in each of which a drive piston and a working piston are movably arranged, wherein the device is designed such that an external driving force can act on the drive pistons, by means of which the drive pistons move in opposite directions, as a result of which the working pistons likewise move in opposite directions and this opposite movement is assisted by a mechanical coupling of the working pistons, and the device furthermore comprises a first and a second pumping unit for conveying a fluid, preferably a liquid, which is assigned to the first and the second hydraulic cylinder, respectively, wherein the rear sides of the working pistons of the first and second hydraulic cylinders are each connected to the assigned pumping unit in such a way, that fluid is alternately sucked in and ejected by the reciprocating movement of the working pistons in the pump unit connected thereto, and wherein the suction and ejection of the fluid to be conveyed in the two pump units take place in a time-shifted manner.
[0005] The pump device according to the invention enables, on the one hand, the transmission of the force acting on the drive pistons by means of the hydraulic fluid located in the hydraulic cylinders to the working pistons, which in turn transmit the force to the pump units which bring about the delivery of the fluid to be delivered.

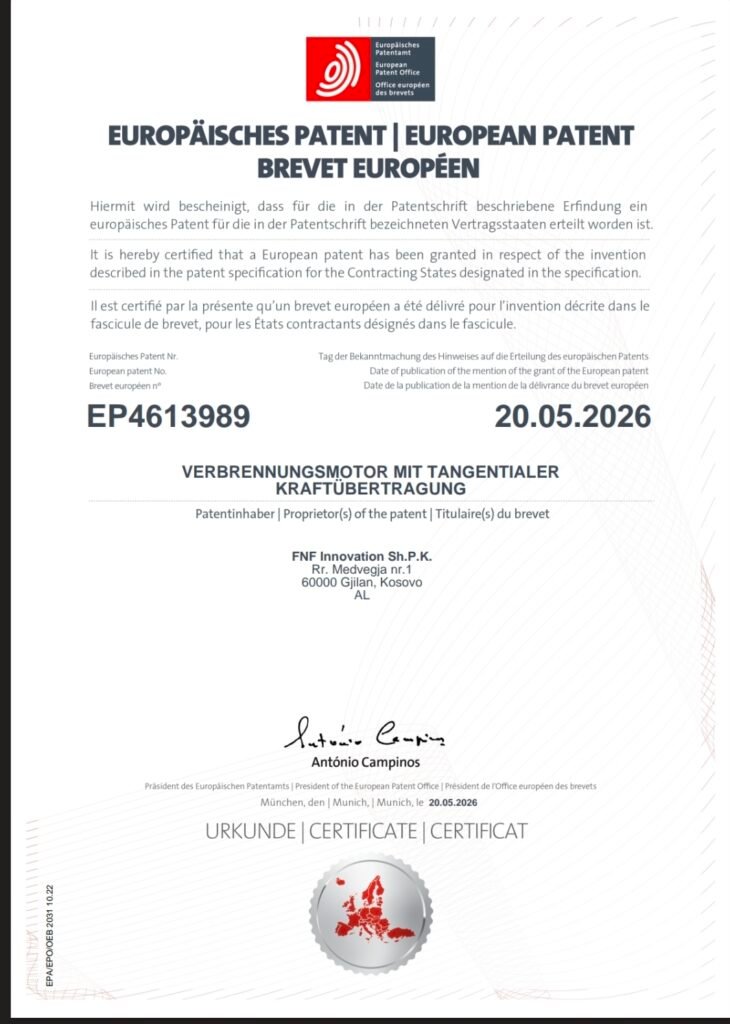

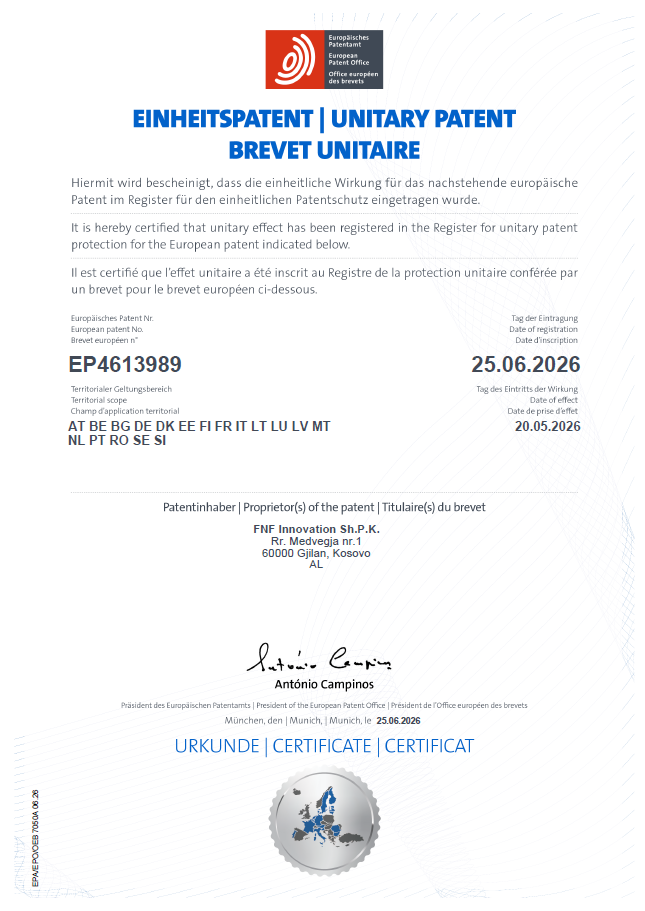

INTERNAL COMBUSTION ENGINE WITH TANGENTIAL FORCE TRANSMISSION

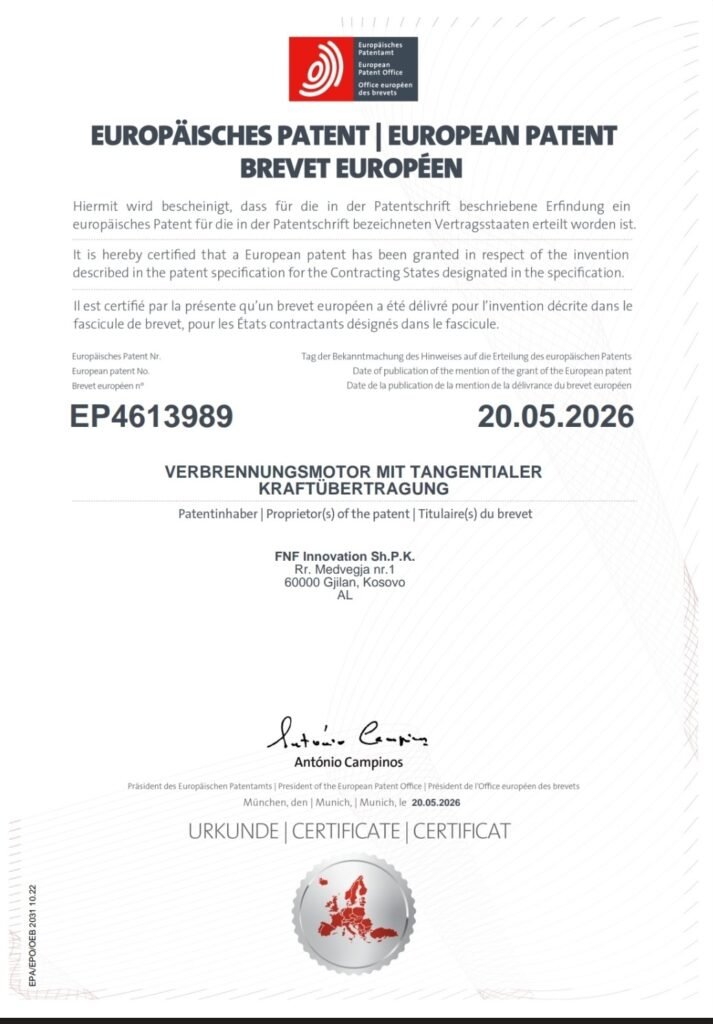

Patent No: EP4613989
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel tangential transmission internal combustion engine, a method of operating the internal combustion engine, a use of the internal combustion engine for driving an engine, a motor vehicle, an aircraft or ship, and an engine, a motor vehicle, an aircraft or ship containing the internal combustion engine.
BACKGROUND OF THE INVENTION
[0002] In the development of internal combustion engines, one of the main goals is to make as effective use as possible of the energy obtained by the fuel used, i.e. to achieve as high an efficiency as possible, in order thereby to save fuel.
[0003] In the prior art, reciprocating piston engines are known in which the work performed by the expansion of the gases generated by the combustion of fuel in a cylinder is transmitted to a piston and further to a crankshaft through a connecting rod, wherein the connecting rod has a joint connection to the piston and the crankshaft (crank drive), respectively. Thus, the oscillating movement of the piston is converted into a rotational movement, i.e. a torque is generated.
[0004] The present invention aims to further improve the efficiency and the operating behavior of an internal combustion engine.
Disclosure of the Invention
[0005] The present invention therefore provides an engine which combines an internal combustion engine drive with a hydraulic transmission ratio. The drive elements of the motor can be executed/scaled in such a way that different power classes can be covered. The hydraulic transmission ratio enables a high torque over the entire rotational speed range of the engine.

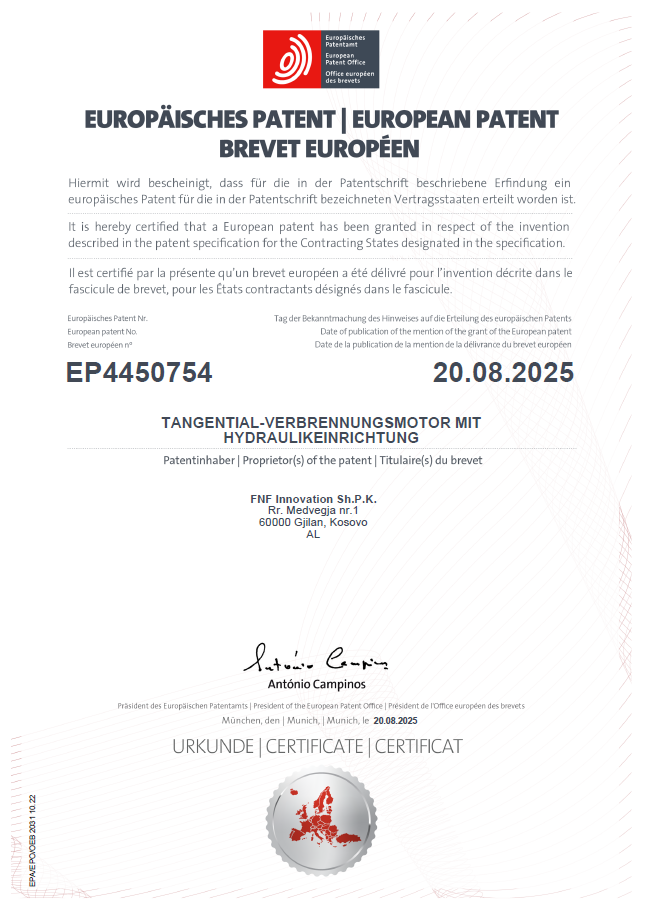

TANGENTIAL COMBUSTION ENGINE WITH HYDRAULIC DEVICE

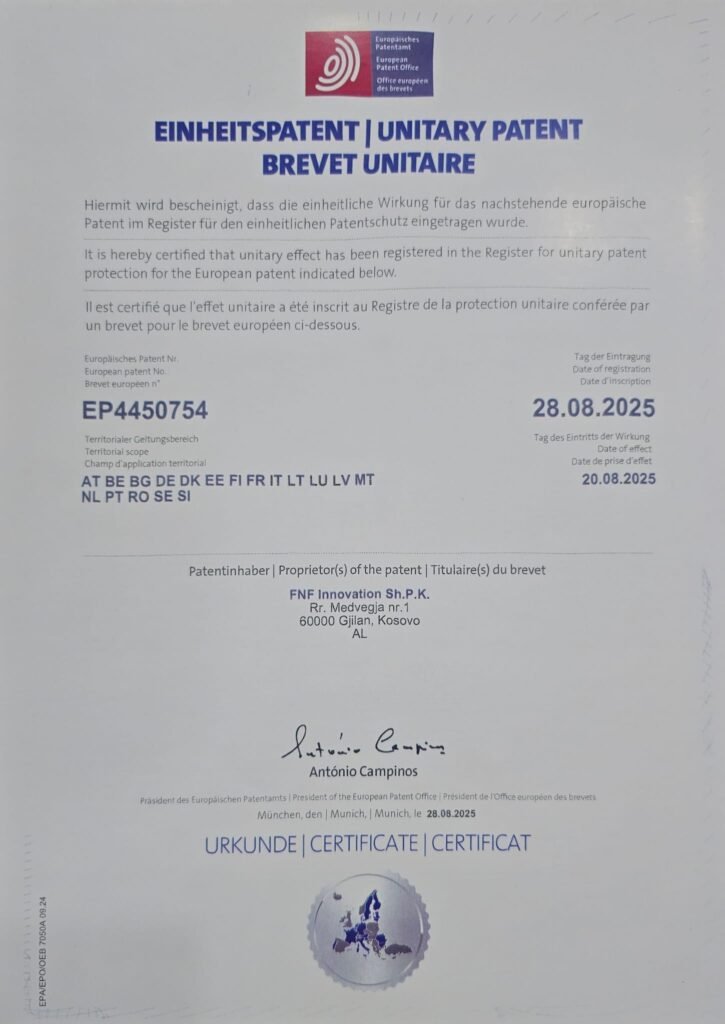

Patent No: EP4450754
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel internal combustion engine.
[0002] In the development of internal combustion engines, one of the main goals is to make as effective use as possible of the energy obtained by the fuel used, i.e. to achieve as high an efficiency as possible, in order thereby to save fuel.
[0003] In the prior art, reciprocating piston engines are known in which the work performed by the expansion of the gases generated by the combustion of fuel in a cylinder is transmitted to a piston and further to a crankshaft through a connecting rod, wherein the connecting rod has a joint connection to the piston and the crankshaft (crank drive), respectively. Thus, the oscillating movement of the piston is converted into a rotational movement, i.e. a torque is generated.
[0004] The present invention has for its object to further increase the efficiency of conventional internal combustion engines in order to be able to allow a more fuel-saving operation.
[0005] The present invention therefore provides an internal combustion engine comprising
a shaft on which a drive element is arranged,
a first cylinder for fuel combustion, having a first drive piston movably disposed therein; and
a second cylinder for fuel combustion, having a second drive piston movably disposed therein,
wherein the internal combustion engine is configured such that the drive pistons move back and forth in opposite directions in the two cylinders,
characterized in that
the first drive piston is mechanically coupled to a first pressure piston,
the second drive piston is mechanically coupled to a second pressure piston,
the first and second drive pistons are operatively connected to the drive element, and
the internal combustion engine has a hydraulic unit in which the first pressure piston and the second pressure piston are movably arranged and which contains a fluid, preferably a liquid, in a space between the pressure pistons,
wherein the internal combustion engine is further configured such that a return stroke movement of the first pressure piston is induced in the hydraulic unit by means of a forward stroke movement of the first drive piston, whereby a forward stroke movement of the second pressure piston is induced in the hydraulic unit and thus a return stroke movement of the second drive piston is induced, and wherein the operative connection between the drive piston and the drive element is configured such that the force generated by the back and forth movement of the drive pistons is transmitted tangentially to the drive element and the drive element sets the shaft in a continuous rotational movement.

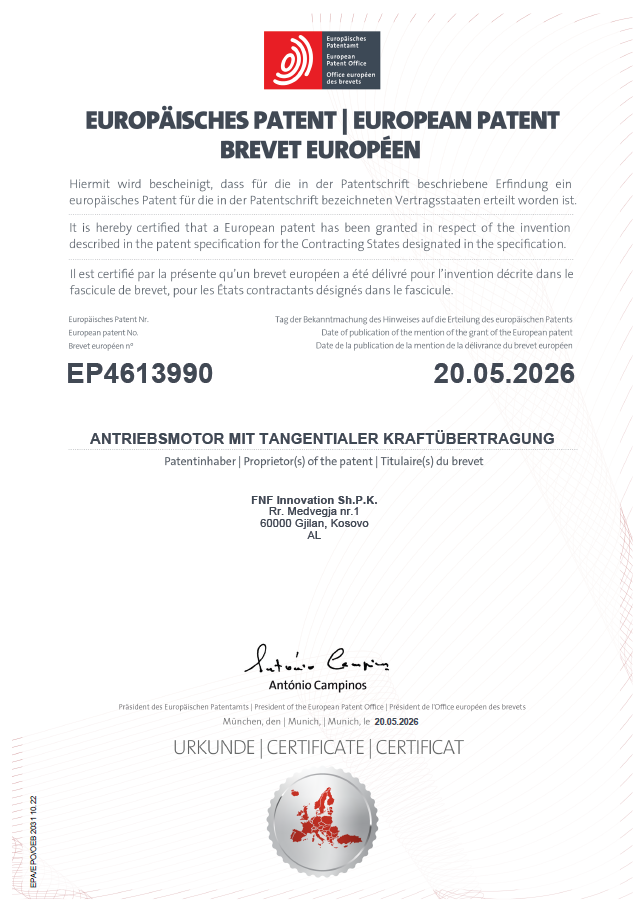

DRIVE MOTOR WITH TANGENTIAL FORCE TRANSMISSION

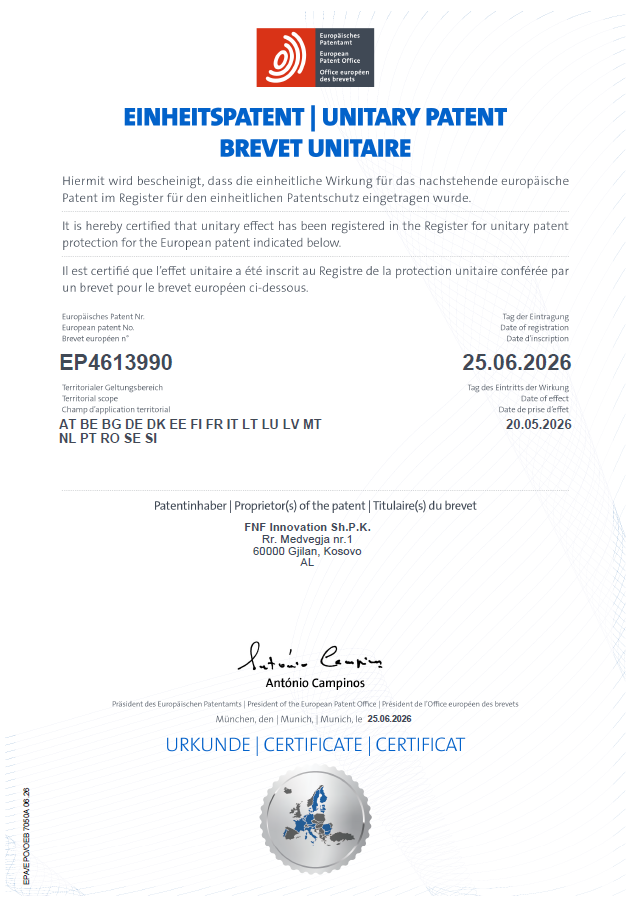

Patent No: EP4613990
Authority: European Patent Office (EPO)
Status: Granted
Description:
[0001] The present invention relates to a novel tangential transmission propulsion motor, a method of operating the propulsion motor, a use of the propulsion motor in an engine or for propulsion of a motor vehicle, aircraft or ship, and a machine, motor vehicle, aircraft or ship containing the propulsion motor.
BACKGROUND OF THE INVENTION
[0002] In industrial applications, for example in medical technology, in foundry plants, in shipbuilding and in the chemical industry, pneumatic motors/compressed air motors can be used, since these have a high power density, emit a high torque even at low rotational speeds and can be used safely in explosive environments. These properties can also be advantageous in mobile applications, such as motor vehicles, aircraft or ships.
[0003] Against the background that the provision of compressed air for driving the motors is associated with high energy expenditure, increasing efficiency plays a central role in their development. In addition, the above applications require a high torque output over the entire speed range of the engine.
[0004] The present invention has for its object to further improve the efficiency and the operating behavior of a pneumatic motor.
Disclosure of the Invention
[0005] The present invention therefore provides a drive motor which combines a pneumatic drive with a hydraulic transmission ratio. The drive elements of the motor can be executed/scaled in such a way that different power classes can be covered. The hydraulic transmission ratio enables a high torque over the entire rotational speed range of the engine.
